Fineair 90 Degree Clamp Elbow
Precision Turns. Full-Bore Flow. Built for High-Demand Air Systems.
✅ Reasons To Choose Our 90 Degree Clamp Elbow?
The FineAir 90-Degree Clamp Elbow Connector is engineered for Secure, high-integrity directional transitions in Aluminium compressed air systems. Where space constraints or directional changes are critical, this elbow connector maintains a Strong, Leak-proof grip with a heavy-duty clamping mechanism. It’s ideal for high-pressure and high-vibration setups.
This connector merges full-bore internal geometry for uninterrupted airflow with a precision-machined elbow clamp system that maintains excellent axial and radial retention. It’s the perfect fit for installations demanding reliability, flow efficiency, and structural robustness.
💡 Key Features at a Glance
1. 🔩 Precision-Machined Elbow Clamp
Rigid construction ensures robust directional joints with long-term sealing reliability under dynamic loads and vibrations.
2. 🔄 Full Bore Curved Internal Profile
90-degree bend maintains a consistent internal diameter for maximum airflow efficiency with minimal turbulence or pressure loss, even at turns.
3. 📏 Axial and Radial Load Resistance
Designed to handle high mechanical stress from both vertical loads and directional force shifts..
4. 🛡️ UL94-HB Certified Material
Made from flame-retardant, corrosion-resistant polymers or metals suitable for demanding environments.
5. ♻️ System-Compatible & Reusable
Integrates seamlessly with all FineAir aluminium piping systems. Ideal for quick reconfiguration and repositioning during maintenance or expansion.
-
Material: High-strength, Aluminium.
-
Max. Working Pressure: 188PSI from -4° to +140°F (13 bar form -20° to +60° C) / 232 PSI from -4° to +113°F (16 bar from -20° to +46° C)
-
Vacuum: 99.9% (0.03" Hg / 1mbar)
-
Working Temperature: -4° to +140°F (-20° to +60°C)
-
Non-flammable materials (UL94-HB standard)
-
Full bore design, consistent inner diameter for both pipe and connectors.
📐 Technical Specifications
📦 Applications
📞 Need Custom Specs or a Quote?
-
Directional transitions in compressed air distribution networks
-
Corner routing in pneumatic control systems
-
Space-saving layouts in industrial automation lines
-
Cleanroom and food-grade air handling setups.
Our technical team is ready to help.
Contact us today to discuss your project or request a custom solution!
💨 Focused on Airflow & Performance.
💨 Bend the Flow. Keep It Full. No Compromise.

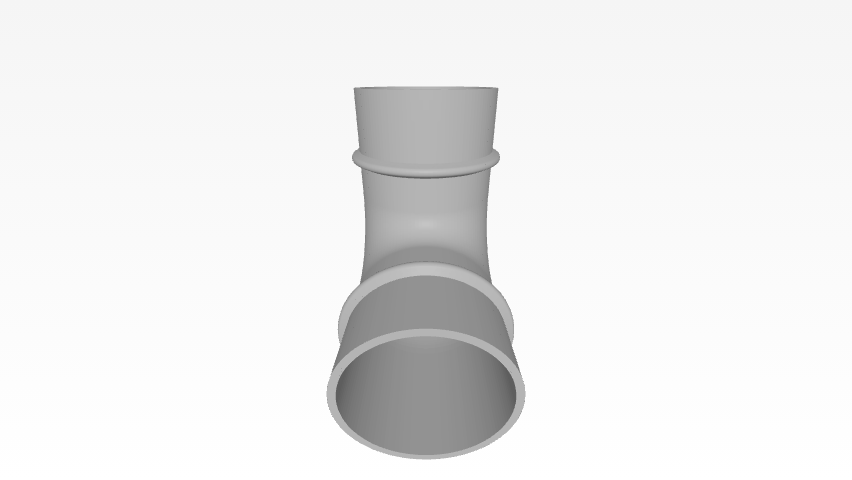

FineAir 90° Clamp Elbow preserves full-bore airflow—even around the sharpest turns.
