Fineair 90 Degree Elbow
Precision Turns. Uninterrupted Flow. Built for Complex Routing.
✅ Reasons To Choose Our 90 Degree Elbow?

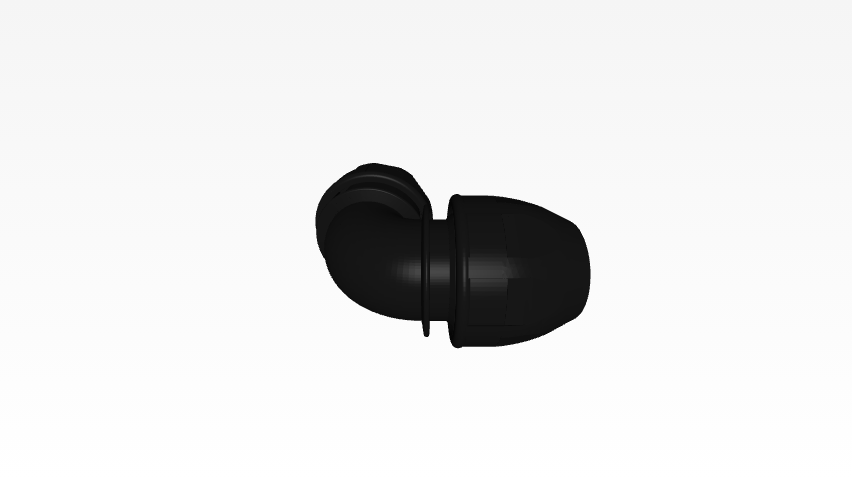

The FineAir 90° Elbow Connector is designed for directional changes in Aluminium Compressed Air Piping Systems without Compromising airflow or system integrity. Engineered with a full-bore design and manufactured from non-flammable, industrial-grade materials, it enables smooth transitions around structural obstacles while maintaining Optimal performance.
Whether installed in tight corners, overhead runs, or wall-mounted layouts, this elbow ensures Precise Pipe Alignment, consistent internal diameter, and Minimal pressure drop — making it a critical component for any efficient compressed air distribution system.
💡 Key Features at a Glance
1. ➰ Precision-Molded 90° Angle
Maintains structural and spatial accuracy in directional changes, reducing mechanical stress on pipe joints.
2. 🔄 Full-Bore Internal Geometry
Unrestricted flow path ensures minimal turbulence and pressure drop during directional transitions.
3. 🔧 Perfect Fit with FineAir Systems
Designed to integrate flawlessly with FineAir aluminium pipes, ensuring leak-free and secure connections.
4. 🔥 UL94-HB Flame-Resistant Material
Built from durable, non-flammable polymers or coated alloys for long-lasting performance in industrial settings.
5. 🏭 Ideal for Complex Layouts
Enables efficient space utilization in tight, constrained, or overhead installations — without sacrificing airflow.
-
Material: High-strength, Plastic.
-
Max. Working Pressure: 188PSI from -4° to +140°F (13 bar form -20° to +60° C) / 232 PSI from -4° to +113°F (16 bar from -20° to +46° C)
-
Vacuum: 99.9% (0.03" Hg / 1mbar)
-
Working Temperature: -4° to +140°F (-20° to +60°C)
-
Non-flammable materials (UL94-HB standard)
-
Full bore design, consistent inner diameter for both pipe and connectors.
📐 Technical Specifications
📦 Applications
-
Compressed air distribution networks
-
Pneumatic control lines
-
Industrial automation systems
-
Cleanroom and food-grade environments (stainless options available)
📞 Need Custom Specs or a Quote?
Our technical team is ready to help.
Contact us today to discuss your project or request a custom solution!
🔧 Direct the Flow. Maintain the Power.
FineAir’s 90° Elbow Connector delivers Smooth Directional Transitions without Compromising Airflow, Pressure, or Performance.
Available Size & Dimensions
Precision Flow Redirection – FineAir 90° Elbow Connector
