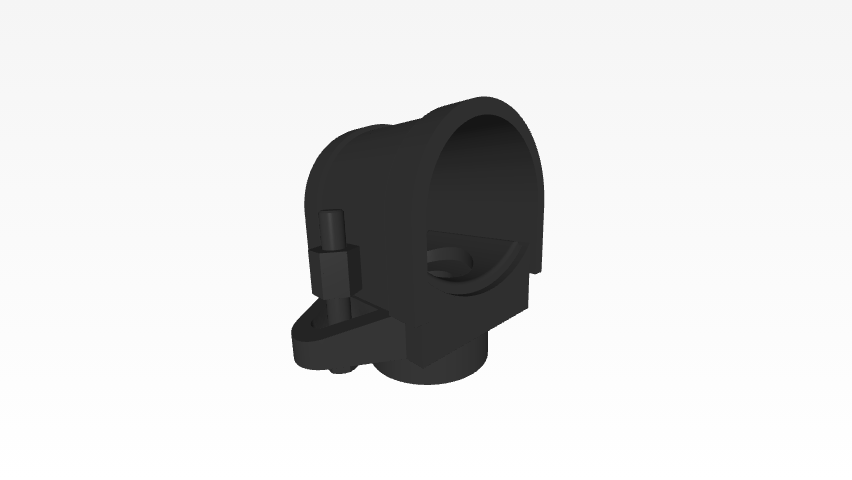

FineAir Saddle Drop Outlet
Tap Into Air Lines Without Cutting Flow. Quick Branching. Zero Hassle.
💡 Why Choose the FineAir Saddle Drop Outlet?
The FineAir Saddle Drop Outlet is the ultimate time-saving solution for creating precise air drop points without disassembling or cutting your main air lines. Just clamp, drill, and connect — it's that simple. Designed for industrial efficiency, this fitting allows you to safely tap pressurized aluminium pipes, delivering clean, reliable airflow to workstations, machines, or remote zones.
Its wraparound saddle design guarantees a tight, leak-proof grip, while the internal profile preserves flow in the main line and ensures consistent pressure at every drop.
💡 Key Features at a Glance
1. 🧲 Clamp-On Design — No Pipe Cutting Needed
Easily attaches to existing pipelines for new drop points without stopping production or modifying your system.
2. 📦 Quick Air Access Anywhere
Ideal for dynamic workspaces — add outlets where you need them, when you need them.
3. 🔗 Leak-Proof Fitment
Secure clamp seals tightly around the pipe — ensuring long-lasting, vibration-resistant connections.
4. 🛡️ Heavy-Duty Aluminium Saddle Body
Corrosion-resistant and built to handle tough environments, high vibration, and industrial-grade workloads.
5.🧰 Compatible & Reusable
Works seamlessly with FineAir aluminium piping and can be repositioned or reused as your system evolves.
-
Material: High-strength, Industrial-Grade Aluminium Alloy.
-
Max. Working Pressure: 188PSI from -4° to +140°F (13 bar form -20° to +60° C) / 232 PSI from -4° to +113°F (16 bar from -20° to +46° C)
-
Vacuum: 99.9% (0.03" Hg / 1mbar)
-
Working Temperature: -4° to +140°F (-20° to +60°C)
-
Non-flammable materials (UL94-HB standard)
-
Full bore design, consistent inner diameter for both pipe and connectors.
📐 Technical Specifications
-
🔩 Adding drops in live, pressurized air systems
-
🏭 Flexible workspace configurations and factory layouts
-
🛠️ Maintenance zones, modular setups, or tool lines
-
📐 Custom layout expansions without full system redesign
📦 Applications
📞 Need Custom Specs or a Quote?
Our technical team is ready to help.
Contact us today to discuss your project or request a custom solution!
🔩 FineAir Saddle Drop Outlet – Quick Branching, Rock-Solid Sealing.
Built for flexibility and performance, the FineAir Saddle Drop Outlet allows you to add branch lines directly onto your main aluminium pipe—without cutting or downtime.
Available Size & Dimensions
